Theoretical deposition of variably sized platelets in the respiratory tract of healthy adults

Introduction

The ambient atmosphere normally includes numerous airborne particles belonging to different size and shape categories (1-3). Besides spherical particles representing only a small fraction of the total particulate mass transported in the air, also non-spherical particles as well as various aggregates and agglomerates may occur as respective aerosols. With regard to non-spherical particles, platelet-like geometries may be distinguished from fiber-like and completely irregular shapes (4,5). Within the class of platelets all kinds of dusts originating from numerous mechanical processes (e.g., crushing, milling, abrading, polishing) have to be evaluated as most prominent. Dust particles may be composed of a multitude of materials, whereby mineral dust primarily produced in mining companies significantly differs from those dusts representing by-products of wood processing, cotton milling or meal production (6,7). Whilst most dust particles, which result from the processes noted above, are characterized by sizes falling within the micrometer scale, so-called graphene nanoplatelets (GNP) have a thickness of only 10 to 100 nm and thus may be attributed to the category of nano-scale particles (8-10). These particulate bodies, however, stand in the focus of modern nano-technology. Although they are produced under strict safety measures, they may be accidentally released into the atmosphere, where they may come into contact with the population (11).

From a medical point of view, inhalation of dust particles retrospects on a long scientific tradition (12), whereas investigations on the intrapulmonary behavior of GNP are still standing at the very beginning (8-10). Extensive inhalation of dusts, representing a negative side-effect at many industrial work places, may result in the development of respiratory diseases such as chronic bronchitis, bronchiectasis, silicosis or pneumoconiosis. In most of these cases metabolism in the lung tissues as well as processes related to gas exchange are irreversibly affected, which commonly leads to a significant decline of live quality (13-15). Inhalation of GNP is generally associated with several specificities. According to previous studies (8-10) these particles may penetrate in high numbers to the lung periphery, where they are preferentially deposited in the alveoli. Due to their extreme biopersistence and largely anisometric geometry, they mostly escape from macrophage clearance and enter the alveolar interstitial (16), where they may induce a multitude of intra- and extracellular reactions. Although a direct relationship between GNP deposition and lung cancer is devoid of any scientific basis hitherto, some references indicate a noxious potential of these particles, which is similar to that of asbestos fibers, man-made vitreous fibers (MMVF), and carbon nanotubes (CNT) (17-20).

Epidemiological and experimental studies describing the health effects of dust inhalation exist in sufficient number (6,7,12), whilst our knowledge on the behaviour of GNP is restricted to a few experiments with laboratory animals (8,9). Experimental work starting in the 1970s and 1980s was always accompanied by theoretical research setting its focus on the development of particle transport and deposition models (1-5,17-20). Meanwhile, mathematical approaches and related computer programs have attained a developmental stage, where respective predictions are marked by both high accuracy and increased reliability. Computer codes working with numerical and stochastic concepts are able to consider a multiplicity of frame conditions, among which non-spherical particle geometry is due to high significance (21-25).

In the present contribution intrapulmonary transport and deposition of variably sized platelets is examined in greater detail. For this purpose, particles ranging in thickness from 10 nm to 1 µm and in diameter from 1 to 30 µm were modeled with regard to their behaviour in the airways (extrathoracic air passages, airway generations 1 to 25) of the respiratory tract. The study among other pursues the goal to find a relationship between hitting probabilities on the one side and particle properties on the other, so that appropriate risk assessments with regard to the inhalation of platelets can be carried out on future.

Methods

Modeling aerodynamic properties of platelet-like particles

Theoretical description of the aerodynamic characteristics of inhaled platelets with different sizes was conducted according to the procedure outlined by Sturm (10) as well as Schinwald and co-authors (9). As proposed in these publications, irregularly shaped particles can be among other approximated by the so-called projected-area diameter. This hypothetical measure simply represents the diameter of a circle with identical area as the image of the particle projected on a horizontal plane. Mathematically, the projected-area diameter (d_proj) can be expressed by the equation

dproj=2⋅(d2proj,max4⋅π⋅cosφ+dproj,max⋅t⋅sinφ)/π[1]

Where d_proj,max denotes the maximal projected-area diameter for the case of parallel orientation between platelet and projection plane, whilst φ represents the angle between platelet and projection plane and t the thickness of the particle. Based upon the above formula, a minimal projected-area diameter is certainly obtained in the case of φ adopting a value of 90°. For the simulations outlined in this contribution a uniform orientation of the inhaled platelets parallel to the stream lines was assumed, so that the maximal projected-area diameter was applied to the further computations. As already stated in numerous previous studies (1-7), the aerodynamic diameter (d_ae) has to be understood as a key measure of theoretical particle aerodynamics, because it describes the diameter of a unit-density sphere with exactly the same aerodynamic properties as the particle of interest. From a mathematical point of view, it can be expressed by the equation

dae=9π16⋅ρpρo⋅dproj⋅t[2]

with ρ_p and ρ₀, respectively, denoting the density of the particle and unit-density (1 g/cm³). In this contribution particle density was supposed to adopt a uniform value of 1 g/cm³, so that the density term in the equation noted above can be fully neglected.

For the theoretical computation of this study platelets with ideal cylindrical geometry were used. Thereby, thickness of the particles was varied between 0.01 and 1 µm, whereas the cylindrical diameter ranged from 1 to 30 µm. According to Eq. [2] aerodynamic diameters of thin platelets (0.01 µm) adopt values between 0.13 and 0.73 µm. The aerodynamic diameter of 0.1 µm thick platelets exhibits a variation between 0.42 and 2.30 µm. Finally, platelets with a thickness of 1 µm are characterized by aerodynamic diameters ranging from 1.33 to 7.28 µm. Whilst thin platelets have to be partly attributed to the transition flow regime, thicker particles completely belong to the continuum flow regime (1-5,26). In the latter case calculation of Cunningham slip correction factors was waived.

Deposition of variably sized platelets in the human respiratory tract

Simulation of platelet deposition in various regions of the human lungs was carried out by assuming (I) a stochastic architecture of the respiratory tract, (II) a generation of random particle transport paths through the bronchial airway structure, and (III) particle collision with bronchial and alveolar walls according to well-defined empirical, analytical, and numerical equations (27-30). Each platelet entering the respiratory system is immediately seized by four main deposition mechanisms (Brownian motion, sedimentation, inertial impaction, interception), whose intensity depends upon several physical properties of the particle (size, density) and the velocity of the inhaled aerosol in the tubular structures (27-30). For an appropriate statistical evaluation of the simulation results 10,000 particle paths and associated deposition scenarios were modelled for each platelet type used in this study. A significant increase of modeling efficiency was achieved by application of the Monte Carlo method and the mathematical technique of statistical weights (27). Besides total deposition denoting the overall fraction of inhaled particles captured in diverse structures of the respiratory tract, also regional (i.e., extrathoracic, bronchial, alveolar) and airway-generation-specific deposition were simulated.

Results

Total and regional deposition of platelets with variable size

Under sitting breathing conditions both total and regional depositions of platelets depend (I) on particle thickness and (II) on the maximal projected-area diameter. According to Figure 1A, platelets with a thickness of 0.01 µm deposit in the respiratory tract by 20.9% to 40.0%, with highest deposition probabilities being recognizable for smallest particles. A completely different picture can be drawn for platelets with thicknesses of 0.1 and 1.0 µm, where deposition probability is subject to a continuous increase with growing particle size. Concretely speaking, platelets with a thickness of 0.1 µm are accumulated in the respiratory tract by 20.9% to 78.3%, whereas platelets with a thickness of 1.0 µm show a deposition probability ranging from 54.2% to 99.6%.

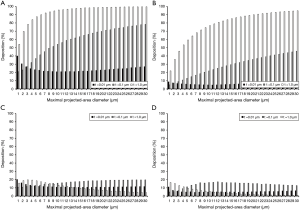

Figure 1 Theoretical deposition of cylindrical platelets with different thicknesses and maximal projected-area diameters under sitting breathing conditions. (A) Total deposition; (B) extrathoracic deposition; (C) bronchial deposition; (D) alveolar deposition.

With regard to extrathoracic deposition of variably sized platelets respective modelling results are summarized in Figure 1B. In general, any size-dependent trends worked out for total deposition can be again observed for particle accumulation in the extrathoracic (nasal) airways. Thereby, platelets with a thickness of 0.01 µm are deposited by 4.89% to 8.88%, whilst platelets with a thickness of 0.1 µm hit the airway walls by 5.02% to 45.80%. Platelets with a thickness of 1.0 µm, finally, deposit with a probability ranging from 21.9% to 94.8%. Deposition of variably sized platelets in the bronchial structures follows some different trends (Figure 1C). In the case of thinnest platelets (0.01 µm) deposition varies between 10.7% and 20.2%, whereby smaller particles again have the ability to produce higher percentages of bronchial hitting events. Platelets with a thickness of 0.1 µm deposit in the bronchial airways by 10.9% to 19.7% (positive correlation between size and deposition probability), and platelets with a thickness of 1.0 µm exhibit an accumulation between 4.05% and 19.7% (maximum for d_proj,max =3 µm). Alveolar deposition depicted in Figure 1D also shows a dependence on platelet thickness and size, whereby thinnest platelets are deposited in the air sacs by 4.9% to 11.1%. Platelets with a thickness of 0.1 µm are distinguished by a deposition ranging from 4.98% to 17.1%, whereas platelets with a thickness of 1.0 µm hit the alveolar walls by 0.77% to 16.5%.

Airway generation-specific deposition of platelets with variable size

Deposition computations conducted for platelets with a thickness of 0.01 µm and maximal projected-area diameters of 1, 15, and 30 µm are summarized in Figure 2A. As can be clearly recognized from the graph, all particles are characterized by deposition probabilities of less than 1% in airway generations 0 to 12 and 24 to 30. In the remaining generations 13 to 23, deposition commonly produces a maximum, whose intensity depends on geometric particle properties. Platelets with d_proj,max =1 µm have their maximal deposition in generation 20 (3.86%), whereas platelets with d_proj,max =15 µm indeed produce their deposition maximum at the same lung site but accumulate there with only 2.01%. Platelets with d_proj,max =30 µm deposit in airway generation 20 by 2.18%.

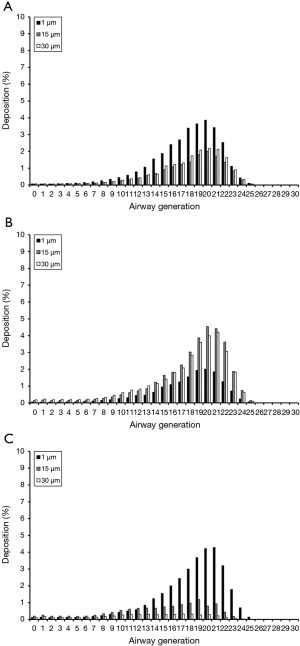

Figure 2 Airway-generation-specific deposition of platelets with maximal projected-area diameters of 1, 15, and 30 µm under sitting breathing conditions. (A) Thickness of 0.01 µm; (B) thickness of 0.1 µm; (C) thickness of 1.0 µm.

Platelets with a thickness of 0.1 µm and the same maximal projected-area diameters used above show rather similar deposition behaviour with respect to their thinner counterparts. In this case deposition maxima can be localized in airway generations 20 and 21. Maximal deposition values amount from 2.01% (d_proj,max =1 µm) over 4.21% (d_proj,max =30 µm) to 4.54% (d_proj,max =15 µm; Figure 2B). Concerning platelets with a thickness of 1.0 µm, deposition of particles with d_proj,max =1 µm reaches a maximal value of 4.28% (generation 21). Particles with d_proj,max =15 µm exhibit a maximal deposition of 1.19% (generation 19), whilst accumulation of particles with d_proj,max =30 µm continuously adopts values of less than 1% (Figure 2C).

Dependence of platelet deposition on inhalation flow rate

In general, deposition of particles in the human respiratory tract is controlled to a high extent by the intensity of breathing. Therefore, light-work and heavy-work breathing conditions produce other particle deposition patterns than sitting breathing scenarios. For platelets with different thicknesses and maximal projected-area diameters this phenomenon is summarized in Figures 3-6. Basically, any intensification of inhalation, which is expressed by higher tidal volumes and flow rates of the inspired air, is characterized by a decrease of total deposition for platelets adopting a thickness of 0.01 µm and by an increase of total deposition for the other two thickness categories used in this study. Similar observations as for total deposition can be commonly made for extrathoracic deposition. In the case of bronchial and alveolar accumulation of platelets with thicknesses of 0.1 and 1.0 µm, respective trends documented for sitting breathing conditions are significantly intensified during light-work breathing, but become again attenuated during heavy-work breathing. Bronchial and alveolar deposition of platelets with a thickness of 0.01 µm, on the other hand, is subject to a continuous reduction with any intensification of the inhalation flow rate (Figures 3,4).

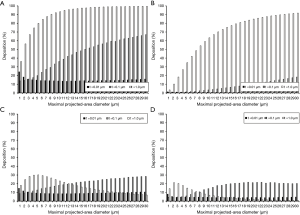

Figure 3 Theoretical deposition of cylindrical platelets with different thicknesses and maximal projected-area diameters under light-work breathing conditions. (A) Total deposition; (B) extrathoracic deposition; (C) bronchial deposition; (D) alveolar deposition.

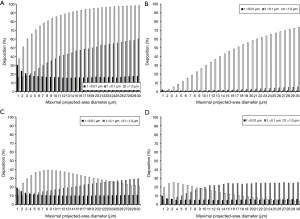

Figure 4 Theoretical deposition of cylindrical platelets with different thicknesses and maximal projected-area diameters under heavy-work breathing conditions. (A) Total deposition; (B) extrathoracic deposition; (C) bronchial deposition; (D) alveolar deposition.

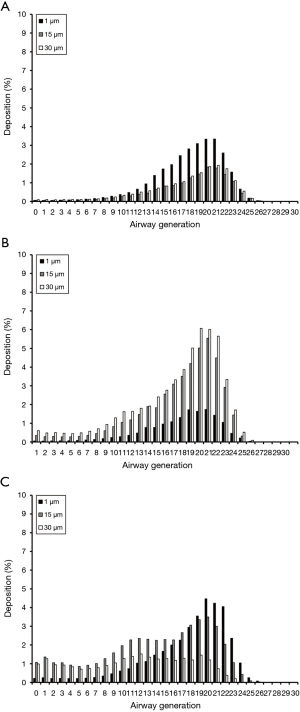

Figure 5 Airway-generation-specific deposition of platelets with maximal projected-area diameters of 1, 15, and 30 µm under light-work breathing conditions. (A) Thickness of 0.01 µm; (B) thickness of 0.1 µm; (C) thickness of 1.0 µm.

Figure 6 Airway-generation-specific deposition of platelets with maximal projected-area diameters of 1, 15, and 30 µm under heavy-work breathing conditions. (A) Thickness of 0.01 µm; (B) thickness of 0.1 µm; (C) thickness of 1.0 µm.

The dependence of regional particle deposition on breathing conditions is also reflected in the airway-generation-specific deposition patterns exhibited in Figures 5,6. Concretely speaking, platelets with a thickness of 0.01 µm undergo a continuous reduction of deposition with increasing inhalation flow rate. This diminution has very similar extents for small (d_proj,max =1 µm) and large particle (d_proj,max =30 µm). Platelets with thicknesses of 0.1 and 1.0 µm, respectively, are marked by enhanced accumulation in the airways after transition from sitting to light-work breathing, whereas transition from light-work to heavy-work breathing is again associated with a decrease in deposition of the inhaled particles.

Discussion

As demonstrated in numerous scientific publications (1-10,31-37), airborne particles adopting platelet-like geometry may occur with high concentrations in the environmental atmosphere. This circumstance mainly concerns particles of the micrometer scale, because many mechanical processes of the industrial-scale produce irregularly shaped dusts of this size category that are spread into the air in high amounts. With regard to platelets of the nano-scale the situation is represented differently insofar as respective particles such as graphene GNP are generated in hermetically sealed areas, from where they can be only released into the atmosphere by accident (8-10). Although GNP do not play an essential role in occupational medicine yet, possible health effects of these particles after their theoretical inhalation are nevertheless of invaluable asset (8-10).

The hypothetical simulations presented in this contribution could clearly demonstrate that platelet-shaped particles may occupy all regions of the respiratory tract. The amount of platelets being accumulated in a certain lung structure such as the extrathoracic airways, bronchi and bronchioles or alveoli depends upon a multiplicity of physical and physiological factors. Among the physical determinants particle size, represented by the aerodynamic diameter, has the most significant effect on total, regional and local deposition of the platelets. As found by a multitude of studies published in the distant and recent past (12,17-20), relationship between total particle deposition and particle size is commonly expressed by a U-shaped curve with high deposition values occurring for very small (<10 nm) and large particles (>5 µm), but low deposition being observable for particulate substances of intermediate size (0.1–1 µm). Platelets and ideal spheres with identical circular diameter (e.g., 10 µm) partly exhibit immense differences with regard to their aerodynamically relevant size: Whilst the spherical particle shows an aerodynamic diameter of 10 µm, a platelet with a thickness of 10 nm disposes of an aerodynamic diameter of only 0.42 µm and thus represents a preferred target for forces taking place on the molecular level (1-4,26). A complete picture, however, is drawn for platelets with a thickness of 1 µm, which adopt an aerodynamic diameter of 4.2 µm and are therefore preferentially seized by mass-related forces (10-12). In general, thin platelets with small diameters are mainly deposited in the upper parts of the respiratory tract. Any increase of the lateral particle dimensions results in a dislocation of deposition towards the lung periphery (10). For platelets with intermediate (0.1 µm) and enhanced thickness (1 µm) reverse deposition effects may be recognized: whilst particles with small diameters are characterized by high deposition intensities in central and distal lung structures, platelets with large diameters again tend to be accumulated in the upper airways of the respiratory tract. Concerning their deposition behaviour thin platelets share some commonalities with CNT, where single-walled representatives are preferably deposited in the upper lung, multi-walled representatives, on the other hand, more likely penetrate to the deeper lung (17-21).

The influence of breathing physiology on platelet deposition in the respiratory tract is best portrayed in terms of the tidal volume and the time used for inhalation of this air capacity (18-21). Previous investigations carried out on variably sized and shaped particles (2-4,36,37) could already demonstrate that any increase of the inhalation flow rate causes a dislocation of small particle deposition towards more peripheral structures of the lung. In the case of intermediately sized and large particles a reverse effect with enhanced deposition in the upper airway structures was described. In the case of platelets belonging to three thickness categories, breathing intensity has different influences on particle deposition. Very thin platelets (0.01 µm) commonly undergo a reduced deposition, whereas platelets with intermediate to enhanced thickness are characterized by a reverse effect. This phenomenon equally concerns total, regional, and airway-generation-specific deposition. The theoretical results are largely confirmed by experiments, which have used small to intermediately sized particles and different breathing conditions (12). In general, particles belonging to the nanometer scale are mainly affected by Brownian motion, whose effectiveness declines with the velocity of the inhaled air stream (12). Larger particulate bodies, on the other side, are chiefly influenced by mass-related deposition mechanisms, whose efficiency positively correlates with the volume and flow rate of the inspired air (27-30).

Conclusions

From the results presented in this contribution it may be concluded that platelets bear the potential of serious accumulation at different lung sites, whereby alveolar deposition, being of high interest in medical respects, can adopt rather high percentages. The number of particles hitting the alveolar walls, however, depends on both physical and physiological factors and thus has to be subjected to further detailed analyses in near future.
