Electromagnetic navigation bronchoscopy: a comprehensive review

Introduction

Electromagnetic navigation (EMN) technology first became available over two decades ago. The ability to reconstruct two-dimensional (2D) CT and magnetic resonance imaging (MRI) into a 3D model delivered a platform for interactive tracking of surgical instruments. This first emerged in the early 1990s and the initial application of the technology was limited to accurately sampling brain lesions using stereotactic platforms (1,2). Its successful application was later reported in other surgical fields including urology and otorhinolaryngology (3,4). The development of 3D CT scan of the thoracic cavity, along with mathematical morphological tools to perform registration algorithms and a model-based shape-form-shading algorithm led to successful synthesis in near real-time of a CT-derived virtual view that corresponded to actual endoscopic views (5). Reconstruction of the airways to generate a “road map” allowed its application for real-time electromagnetic (EM) tracking and subsequently navigation of the bronchoscope and endobronchial tools via the working channel into the peripheral lesions (6,7). The success of real-time EMN bronchoscopy was demonstrated in first human study where the diagnostic yield approached 70% (8). Since that first report, multiple clinical studies have been published exploring the utility of this technology, with or without combination of fluoroscopy, radial-probe endobronchial ultrasound (r-EBUS), and cone-beam CT imaging for additional confirmation or maneuvering of sampling tools.

Clinical challenge

Small peripheral pulmonary opacities are being increasingly identified due to growing use of CT imaging of the chest. Also, the propensity of smaller filtered cigarette smoke particles to penetrate deeper in the tracheobronchial tree is likely contributory to the increase in relative proportion of peripheral lung lesions (9). This upsurge requires an ever-increasing amount of resources for the evaluation, follow-up, and management of radiographic pulmonary findings (10). Further, lung cancer remains a leading cause of cancer-related mortality and this is projected to increase by 2020 (11,12). The National Lung Cancer Screening Trial demonstrated relative risk reduction in mortality by 20% with the application of lung cancer screening by low-dose CT to a pre-specified target population of high-risk patients (13). Based on this trial, the United States Preventive Service Task Force endorsed low-dose CT for lung cancer screening with a Grade B recommendation in high-risk patients (14). As a natural consequence of adaptation of low-dose CT by professional societies as a screening tool (15-17), there has been an increase in the number of patients referred for further diagnostic work up of lung nodules. In this context, it is behooving for the institutions offering lung cancer screening to have a formal multi-disciplinary program to risk-stratify patients with radiographic abnormalities and have the ability to offer, if necessary, a timely and minimally invasive diagnostic evaluation for lung lesions.

EMN

EMN relies on the ability of the charged particles (electric current) to generate an EM field. A field generator emits a low-strength (<0.0001 Tesla) EM field that passes through the patient’s body. Once a dedicated sensor is placed into the field, current is generated within the sensor coils allowing for determination of their x, y, and z coordinate positions, as well as, orientation including roll, yaw, and pitch. As illustrated in Figure 1, a multitude of sensor coils are embedded in the EM sensor to provide accurate spatial position within the EM field. Importantly, the EM field can be distorted due to the induction of electric currents in ferromagnetic materials close to, or within the field. To counter this issue, one of the commercially available platforms (superDimension^TM) recommends mapping of the procedure bed and the room. Other commercially available platforms require placing the field generator over the patient’s body, preferably on the side of the lesion, and do not require bed or room mapping. Regardless, the ability to track a sensor in spatial context is but one half of the equation.

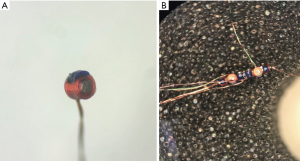

Figure 1 Magnified view of (A) single sensor coil embedded within the electromagnetic sensor and (B) multiple coils intertwined and aligned within the sensor to predetermined specifications and calibrated. Feedback from each individual sensor coil is integrated by software to determine its spatial position in the electromagnetic field.

Much of the application of EMN technology depends upon CT imaging techniques. A standard CT scan contains a set of 2D slices, consisting of 512×512 pixels. Based upon density of the imaged structure, each point is assigned a numeric value. This scale measured in Hounsfield units (HU), ranges from −1,000 to +3,000. Air has the lowest density at −1,000 HU and bone the highest at +3,000 HU (aside from metallic foreign bodies), with fat, water, blood, and tissue in between at −100, 0, 20, and 30–150 respectively. A 3D volume can then be generated as each pixel actually represents an average of a defined slice thickness or depth.

From these data, both segmentation of the airways, and a virtual bronchoscopic (VB) image can be generated. Segmentation refers to the process of extracting anatomic structures from CT images. Each pixel is assigned a label according to certain visual characteristics. Through the use of propriety software algorithms, structures such as airways, nodules, blood vessels, and lung parenchyma can be added or removed from a reconstructed image. Accurate airway reconstruction allows generation of a reliable VB image, which can then be utilized concomitantly with the real-time bronchoscopy view. This allows the operator to follow the “road map” during the procedure while the EM sensor provides real-time feedback on the path, as well as, relationship with the target lesion. Importantly, certain VB navigation platforms, e.g., Archimedes^TM, have a different algorithm that integrates CT data, bronchoscopy and fused fluoroscopy, which provides a 3D, real-time airway, and proprietary parenchymal navigation without the use of EM field generator, or sensor.

Implementation of any new technology requires a streamlined workflow, training of all team members, and understanding of nuances at individual institutions. A procedural overview and practical work flow that could be adopted by the users of EM technology platforms is discussed in the following section.

Procedure overview

EMN bronchoscopy is a multi-disciplinary team procedure that involves careful review of the clinical history, delineation of the intent of the procedure, pre-procedure planning including thorough review of CT imaging, selection of type of sedation based on patient and/or operator factors, utilization of ancillary equipment such as fluoroscopy and r-EBUS, and discussion with pathology team on sample processing to maximize yield.

An important aspect of pre-procedure planning is to meticulously review the CT imaging including coronal, sagittal, and axial sections to identify the target segment or sub-segment, and importantly to assess airway-lesion relationship. Accurate pre-procedure mapping and identification of pathways leading to the target lesion depend on the quality of input CT images. Many digital imaging networks upload lower fidelity thick-cuts of 4–5 mm which compromises a full assessment of bronchial anatomy via 3D reconstruction. Thin-cut CT images on the order of 1 mm provide the bronchoscopist with a better sense of the aforementioned variables and therefore need to be requested. For instance, small airways leading to the target and its relationship to the lesion may become more apparent on a thin-cut CT. Additionally, one can assess the acuity of sub-segmental branch points, the number of bifurcations of a given pathway to the lesion, and an estimate of the trajectory of sampling tools needed to access the lesion. This is likely to assist the operator in optimal tools selection, e.g., extended working channels (EWC), needles, cytology brushes, and biopsy forceps, thus developing a meticulous approach to sampling.

Procedure workflow

CT workflow

Currently available EMN systems require CT acquisition and subsequent uploading into the hardware unit using proprietary software and in a specific format that allows for optimal 3D airway reconstruction and navigation. CT protocols recommended by some of the widely available commercial navigation platforms in North America are reviewed below and in Table 1.

Veran^TM

Same day imaging is recommended and prior to CT acquisition, proprietary sensors or vPad^TM are placed over the anterior chest in an inverted L formation with the tail opposite the side of lesion. Once these are securely attached, an inspiratory scan is obtained with arms above the head followed by an expiratory scan with the arms by the patient’s side.

superDimension^TM

Inspiratory scan only as per manufacturer’s recommended protocol and preferably within 30 days of the procedure.

Archimedes^TM

CT imaging is acquired at functional residual capacity (FRC) preferably within 30 days of the procedure. Image acquisition is performed after placing a positioning board with a headrest, cushion, and a knee wedge underneath the patient in a fashion that is similar to the patient positioning during the actual procedure. Patient is coached to hold their breath at FRC.

Planning phase

Digital Imaging and Communications in Medicine (DICOM) formatted images can be loaded onto a planning station by either a media CD/DVD or via a direct network feed. The planning phase can be performed using standard axial, coronal, and sagittal views, or any combination of those where one can essentially pivot around the target to identify an airway closest to it, or with a tracheobronchial tree obtained via segmentation as previously discussed. Additional functions such as contrast, zoom, pan, and measurements are available via toolbars. Subtle differences exist depending upon which commercial system is used, however, the concept of identifying the target lesion and closest immediate airway while working back to the more central airway, so called “the breadcrumb method”, is conceptually similar. The view offering the best alignment is determined by the bronchoscopist. However, by using different views, one can identify airways and paths that would otherwise not be obvious in single views. Once the preliminary plan has been outlined, the plotted route can be visualized via a VB tour, replicating the view that will be seen during the procedure. This allows for adjustment, especially in those lesions for which two leading pathways are identified. In addition, manual registration points that are easily identifiable, such as main and lobar carinas, can also be labelled should automatic registration be unsuccessful.

Bronchoscopy set up

Systematic bronchoscopy set-up prior to initiating EMN is key to a successful procedure. The SPiN System™ from Veran has a mobile field generator that can be placed in a number of orientations and does not require a mapped patient bed or room. For procedures performed with superDimension™ EMN System, ensuring a field free of ferromagnetic materials within approximately 60 cm (2 feet) radius reduces system errors. The location board, which contains the EM field generator, is placed under the patient’s mattress. Both systems include a set of pads placed on the anterior-lateral thorax to allow for automatic registration and precise tracking of the sensor. The Archimedes^TM system does not have an EM field generator. Even so, a patient position board and proper positioning of fluoroscopy is required for optimal results. Figure 2 illustrates three main commercially available platforms in North America.

Figure 2 Commonly available navigation bronchoscopy platforms in North America. (A) Veran^TM Medical Technologies EMN platform with an electromagnetic field generator and view screen demonstrating real time procedure; (B) Veran^TM vPad^TM placement for a supine position with the pads forming an inverted L and the smaller pads placed opposite the lesion; (C) superDimension^TM EMN platform; (D) superDimension^TM location board containing electromagnetic field generator placed under the patient’s mattress; (E) superDimension^TM pads in a triangular orientation with the cranial pad 2 cm below the sternal notch and the lateral pads overlying the 8^th rib bilaterally; (F) Archimedes^TM VB navigation platform; (G) patient positioning board used during the Archimedes^TM navigation procedure to allow placement of the patient in same position as during the CT imaging.

Registration

Following an initial inspection bronchoscopy for secretion clearance and assessment for occult endobronchial lesions or abnormalities, registration is performed.

The superDimension™ Navigation System version 7 contains an EWC and locatable guide (LG), containing the EM sensor, that are inserted together through a bronchoscope with a minimum working channel of 2.8 mm until roughly 10 mm of the LG is visible endoscopically. The EM sensor feedbacks its location within the EM field. The bronchoscopist then performs a balanced inspection whereby the software can “automatically” register the airways. Once enough data has been collected to correlate the patient’s anatomy with the CT-generated model, a VB image appears on the screen. Should this process fail, manual registration is required. For this, the operator is required to touch the LG to the pre-determined registration points, including main carina and lobar carinas.

The SPiN System™ from Veran differs in that the software automatically registers the patient and tracheobronchial tree via a CT scan that was performed on the same day with respiratory sensors in place. The operator selects which tool or catheter will be used for the system to register the device prior to the navigation phase. In essence, the patient’s real-life anatomy and CT images are automatically linked to generate a VB image, thereby avoiding a step and potentially decreasing procedural time. For CT images obtained from referral scans, manual registration similar to that described above is required.

The registration process with Archimedes^TM VB platform requires aligning of 3D CT view with live 2D fluoroscopy view. Three fluoroscopy images of the patient’s thorax are obtained using C-Arm, each alternating with the software prompt to match up with the virtual fluoroscopic image of the same target area. The fused fluoroscopy essentially uses body fiducial points to minimize the CT-to-body divergence.

Navigation

The initial navigation phase is similar across platforms. All systems can display multiple screens simultaneously at the discretion of the bronchoscopist including axial, sagittal, and coronal CT images, 3D map, video bronchoscope, VB, and a local or “tip view” where the sensor is overlaid on a planar CT. Other information available to the bronchoscopist is the selected target, pre-planned pathway, and distance to the center of the target. The method by which the bronchoscopist navigates to the lesion is where the systems diverge.

The superDimension^TM Navigation System utilizes the Edge^TM EWC along with LG to reach the target lesion. The catheter comes in various pre-formed curves, ranging from 45° to 270°. The decision of which angulation to use is at the discretion of the bronchoscopist and pre-planning, as previously described, plays a key role. For example, lesions located in the superior segment or medial sub-segments of the lower lobes, as well as, those with acute airway branching points are likely to need a greater curvature. During navigation, the catheter is rotated so that in the ideal situation, the planned pathway is bright and on the right-hand side of the screen. Most of the navigation occurs beyond the endoscopic view of the bronchoscopist and in the “peripheral view” window of the software. Once the lesion is reached, the EWC is locked, the LG is withdrawn, and sampling tools are sequentially inserted through the EWC.

The SPiN System^TM from Veran, in contrast, utilizes a continuous monitoring system. In this system, the navigation sensor is embedded within each sampling tools, such as needles, brushes, and forceps. The use of tracked instruments relies on the bronchoscopist to visualize and access the appropriate pathway leading to the lesion in conjunction with the virtual image and pathway. Should the bronchoscopic navigation be unsuccessful, EM trans-thoracic needle aspiration (ETTNA) or SPiN Perc^TM can be utilized. An example of EMN guided TTNA is shown in Figure 3. In this configuration, the operator chooses a pre-planned pathway from an entry site on the chest wall using a percutaneous needle with an inner stylet containing the navigation sensor. Tissue sampling is performed after removing the inner stylet and using the needle as co-axial system to pass smaller gauge needle biopsy tools.

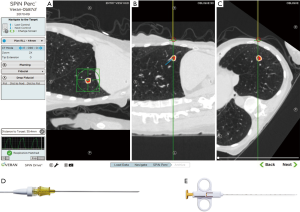

Figure 3 Transcutaneous needle sampling using SPiN Perc^TM EMN technology (Veran Medical Technologies). (A,B,C) Sagittal, 90° oblique, and oblique views with the target lesion in red, skin entry site indicated by a red circle, and the green line denoting the needle trajectory. The circle and the square, overlying the green crosshairs, both turn green when the needle trajectory is in alignment with the target; (D) SPiN Perc^TM tip-tracked biopsy needle; (E) SPiN Perc^TM biopsy gun for core sampling.

The Archimedes^TM system from Broncus^® integrates CT data, bronchoscopy, and fused fluoroscopy to provide 3D, real-time airway and proprietary parenchymal navigation, commonly referred to as bronchoscopic trans-parenchymal nodule access (BTPNA). The segmentation tools allow for nodule, vessel, and airway mapping with virtual pathway guidance. The system does not utilize an EM sensor or tracker during the procedure to confirm the position of the catheter. It is important for the user of EM technology to understand the principles of fused fluoroscopy and BTPNA as there is good bit of overlap exists with competing platforms.

Airway-lesion relationship: impact on sampling tools

The importance of understanding airway-lesion relationship cannot be overstated. In their seminal study, Tsuboi et al. carefully reviewed the tumor mass morphology in surgically resected specimens and described four types of relationships between the bronchus and tumor mass. Type I: bronchial lumen patent up to the mass and tumor tissue exposed into the lumen; type II: bronchus appeared to be caught in the growing lesion and the tumor tissue exposed into the narrowed lumen; type III: bronchus compressed by the tumor with narrowed lumen and tumor tissue not exposed; and type IV: complete obstruction of the bronchus preventing passage of tools via the stenotic airway (18). In the aforementioned study, tissue sampling was performed using a rotatable biopsy curet advanced via modified Metras’ catheter under fluoroscopic guidance. In current authors’ opinion, this pioneering work exemplifies the importance of understanding the crucial relationship between scrutinizing review of the CT image and selection of tools deployed for successful specimen acquisition.

The role of CT in delineating airway-lesion relationship was described by Naidich et al. (19). The “bronchus sign” or “CT-bronchus sign” is the finding of an airway leading to or contained within the lesion (nodule or mass). Its value in predicting success of diagnostic bronchoscopy has been well studied (20,21). The success rate of diagnostic sampling increased for both the peripheral and central lung lesions when bronchus sign was present. Further increase in diagnostic yield was noted when transbronchial needle aspiration (TBNA) was performed in addition to transbronchial biopsies, signifying the utility of sampling tool with penetrating ability across the bronchus unlike brushes and biopsy forceps (22-24).

As illustrated in Figure 4, attention to the airway-lesion relationship not only helps with tool selection but may also provide valuable information on the need for steerable catheter to better align the distal tip of the EWC or guide sheath to the target lesion.

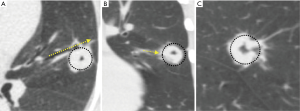

Figure 4 Airway-lesion relationship with CT imaging as a helpful tool. (A) Axial view of a cavitating lesion with an airway adjacent to the lesion. Extended working channel as well as sampling tool, such as needle, brush, or biopsy forceps are likely to bypass the target lesion if deployed in the adjacent airway (arrow illustrating theoretical path of sampling tool); (B) coronal view of the same lesion with a smaller branch that has an end-on relationship with the nodule. Deployment of a steerable catheter through this smaller airway (illustrated by arrow) may allow end-on alignment for sampling the lesion; (C) sagittal view of the same airway as in coronal view re-demonstrating end-on alignment with the thick walled cavitary lesion.

Sampling tools: impact on targeting the lesion

The choice of sampling tools is an important aspect of the procedure and may impact the diagnostic yield, thus resulting in success or failure of EMN. Commonly used diagnostic tools include cytology brushes, cupped or serrated forceps, and “standard” TBNA catheters (25-27). As illustrated in Figure 5, for fluoroscopically visible lesions, intra-procedure fluoroscopy is valuable in selection of sampling tools. Other tools that are available, but less widely studied include modifications to TBNA needles including SPiN Flex^TM, Arcpoint™, GenCut™, and superDimension^TM triple needle cytology brush.

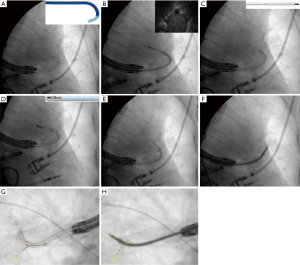

Figure 5 Use of fluoroscopy for sampling tool selection in a fluoroscopically visible lesion (circle). (A) Relationship of biopsy forceps with the lesion; (B) inability of cytology brush to navigate across the occluded airway (Tsuboi Type III or IV lesion) thus resulting in sampling of only bronchial cells. Arrow indicating proximal deployment of the cytology brush; (C) needle deployment into the proximal aspect of the lesion via an established guide sheath.

In situations where a curved EWC is used and the catheter maintains a significant degree of curvature for appropriate alignment with the lesion, a more flexible tool that is less likely to deflect the catheter should be considered. The flexible cytology brush or GenCut^TM are examples of such tools. This concept is illustrated in Figure 6. Flexible peripheral TBNA needles are also commercially available, however, there is paucity of data on use of these needles. In the authors’ personal experience these tools may be helpful in select circumstances. In contrast, a curved catheter may be needed to navigate into proximal acute angles, e.g., left or right upper lobe apical or posterior segments, but the catheter may not be in direct alignment with the lesion distally. In such situations use of a stiffer tool such as a needle or forceps may be required to purposefully deflect the catheter into an appropriate alignment. When a direct communication between the airway and nodule is not present, as in Tsuboi type III and IV lesions, TBNA is usually necessary to achieve diagnostic sampling.

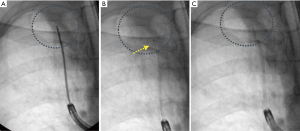

Figure 6 Deflection of the extended working channel (EWC) with different sampling tools in an attempt to sample a lesion in the posterior segment of the left upper lobe. (A) Curved Edge^TM EWC in position after withdrawal of the LG. Image in inset shows the tip of curved Edge^TM EWC; (B) flexible radial probe passing through the established Edge^TM EWC without significant deflection and eccentric view of the lesion, which is shown inset; (C) deployment of cytology brush without significant deflection of the EWC. An example of cytology brush is shown inset; (D) use of a flexible GenCut^TM needle penetrating the lesion without much deflection. Distal tip of GenCut^TM is shown in inset; (E) significant deflection of the EWC when superDimension^TM aspiration needle catheter was passed via EWC; (F) significant deflection with partial straightening of the EWC with passage of a rigid biopsy forceps tool, illustrating the value of fluoroscopy in assessing real-time tool alignment; (G,H) illustration of the degree of deflection of the EWC with passage of a stiffer biopsy forceps.

Combining other technologies with ENB can augment and refine the navigation and position of the sampling tools and catheters. Use of the planning CT and 3D reconstructed pathway provides the bronchoscopist a sense of the trajectory of the sampling tools/catheters needed to successfully access a lesion. Radial-probe EBUS can delineate airway-lesion relationship and provide positioning in real-time as demonstrated in Figure 7. By using fluoroscopy, one can make subtle adjustments based upon the spatial relationship above. If using a catheter-based system, fluoroscopy is helpful to assess the degree of deflection by individual tools. Some limitations to this include the inability to see small nodules on fluoroscopy, the cumbersome nature of fluoroscopy, additional radiation dose, and the need for larger procedural space. Another adjunct technology is the use of cone beam CT or 3D fluoroscopy to confirm successful navigation or catheter/tool-nodule relationship and anticipated biopsy trajectory. This requires a dedicated machine and personnel time that may be challenging to secure at some institutions. Also, cone-beam CT is associated with a higher radiation dose than standard fluoroscopy though much lower than low-dose CT for lung cancer screening (28). Further, the value of intra-procedure 3D imaging is diminished in the case of procedural hemorrhage, which may obscure the lesion.

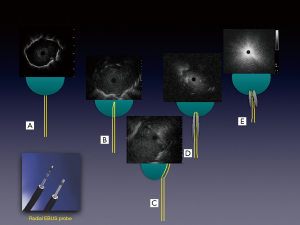

Figure 7 Use of radial-probe EBUS (r-EBUS) to better delineate airway-lesion relationship after navigation to the lesion is performed. (A) Airway leading into the lesion with a concentric view on r-EBUS; (B) airway with tapering as it gets closer to the lesion or possibly a branch point resulting in partial-concentric view on r-EBUS; (C) airway circumventing the lesion or lesion exerting extrinsic compression of a patent airway, resulting in partial view on r-EBUS; (D) airway with peri-bronchial tumor invasion and extrinsic compression preventing adequate visualization of lesion with r-EBUS; (E) complete occlusion of the airway resulting in no visible lesion on r-EBUS, though EWC catheter or sampling tool may be in desired alignment with the lesion. EBUS, endobronchial ultrasound; EWC, extended working channel.

Diagnostic yield: review of clinical studies

The diagnostic yield for EMN bronchoscopy is quite variable, ranging from 33–88%. Three recent meta-analyses have pooled diagnostic yields of 65–70% (25,26,29). Since the release of the first EMN system, numerous updates have occurred. These include evolution in the technology, as well as catheters and biopsy tools. The platform offered by superDimension^TM is now in its second generation with seventh generation software, while a majority of the published studies were performed with earlier versions. Additionally, navigation catheters have undergone extensive modification and greater number of devices are available. Clinical studies with other commercially available systems are currently limited but early data is promising. Factors including the use of rapid on-site cytology evaluation (ROSE) and fluoroscopy are difficult to account for across studies though in authors’ experience, both are valuable.

Lobar location has not been shown to definitely effect yield (30-35) although right middle lobe lesions are likely to be more accessible (31). Technically, the upper lobe segments have acute angles to negotiate and require flexible tools despite use of curved catheter. Likewise, the medial sub-segments of the lower lobes offer limited freedom due to tool displacement given acute bends of the tracheobronchial tree. Lesions located in lower lobes, especially those in proximity to the diaphragm, are more likely to be affected by respiratory variation (36). Attention to branching points and anticipation of challenges will help the operator to be better prepared.

Although both conscious sedation and general anesthesia (GA) have been used in published studies, an optimal method has not been identified. In two of the earlier EMN bronchoscopy studies by Eberhardt et al. (31,37), no statistically significant differences in diagnostic yield were noted and similar findings were noted by Bowling et al. (33). A meta-analysis of 15 studies by Gex et al. suggested a better diagnostic yield with GA (69% vs. 58%) (26). Until optimal anesthetic modality is ascertained, the decision on which anesthetic modality to use depends on operator preference, patient co-morbidities, anticipated procedure time, lesion characteristics, and need for procedures such as concurrent mediastinal staging, and available institutional resources.

Lesion size has an impact on the yield. Yield has been shown to be significantly reduced for lesions <2 cm (61% vs. 83%) despite the ability to navigate within 1 cm of a target lesion in 93% of cases (34,38). Various factors including real-time navigation error and nodule hysteresis during respiratory cycle could possibly explain this finding (36,39). Additionally, catheter deflection as a result of variable rigidity of sampling tools could result in alteration of catheter-lesion alignment during real-time sampling and reduce the diagnostic yield.

The importance of the bronchus sign in predicting success of bronchoscopy procedures has been studied extensively and discussed in an earlier section (20,21). While intuitively this should be applicable to EMN bronchoscopy, only one study has evaluated this systematically. In a prospective study by Seijo et al., lesions with a bronchus sign were accurately diagnosed in 79% of cases versus 31% in those without (40). Other studies have indicated a trend toward increased yields with the bronchus sign (41). Importantly, confirmation with r-EBUS prior to sampling has also been shown to be associated with a higher diagnostic yield (42). Important to note here is that lack of r-EBUS image could also mean complete occlusion of the airway, although the navigated catheter may be in good alignment with the lesion. This and other types of r-EBUS relationship are shown in Figure 7.

Lastly, while most of the interest and research has been focused upon diagnosis of peripheral pulmonary lesions, EMN is also applicable to central lesions, including lymph node sampling and is reported to have a high diagnostic yield (43). In these instances, the software can be used to make the airway wall appear more transparent making the lesion of interest more visible. By using the navigation VB image in conjunction with an endoscopic view, the needle entry site and trajectory can be determined. The LG is used to make an indentation on the mucosa and TBNA is performed via the marked entry site. Availability of convex-probe EBUS bronchoscopes at most centers with EM technology limits its use for sampling central lesions.

EMN for lesion marking

In addition to diagnostic sampling, EMN bronchoscopy has been used successfully to mark pulmonary lesions to facilitate radiotherapy as well as surgical resection of non-palpable lesions. Tumor marking can be performed by a transthoracic approach under CT guidance albeit with a relatively higher complication rate, namely pneumothorax and hemothorax (44), both of which may not be a major issue if surgical resection is planned the same day (45). Rare adverse events such as air or marker embolization to coronary artery have been reported as well and carry high morbidity (46). In that respect and in the hands of an experienced operator, EMN allows accurate localization and marking of the lesion endobronchially with low risk of complications.

Fiducial marker placement

Fiducials are radiographically visible markers made of dense metal, gold or platinum, which are deployed inside or in the vicinity of the tumor to allow precise identification and tracking for stereotactic body radiation therapy (SBRT). Commercially available fiducial markers come in various shapes and sizes, and can be linear or coil-springed. These are illustrated in Figure 8. The marker can be deployed either by retrograde technique of fitting into the distal tip of a brush or transbronchial needle catheter or by dedicated catheter where the fiducial is inserted through the proximal hub of the catheter. The catheter is then advanced via the working channel of the bronchoscope to the target lesion and fiducial is deployed by gently pushing it out with the brush, needle, or stylet wire. Depending upon the type of SBRT system and software enhancements, between 1 and 6 fiducial markers are required per target lesion. The accuracy of bronchoscopic placement of fiducials for peripheral pulmonary lesions is greatly enhanced by EMN. In experienced centers, rates of success for placement by EMN guidance are between 90% and 100% (47,48).

Figure 8 Examples of commercially available fiducial makers. (A) SuperLock^TM, comprised of a gold seed for visualization/tracking and a nitinol coil to facilitate anchoring into the airway; (B) CyberMark^TM, linear gold seed marker; (C) VISICOIL^TM, helical coiled gold spring that can either be linear or conform to tissue anatomy; (D) chest radiography showing final placement of 2 fiducial markers for a left upper lobe lesion.

A major limitation of bronchoscopic fiducial placement is marker migration, the incidence of which approaches 10% (47-49). Lower displacement rates may be achieved with coil-spring markers (50) or use of vascular embolization coils as markers (51). Lack of a leading airway is rarely a barrier, since deploying fiducials directly inside the target is not necessary for successful stereotactic delivery of radiation therapy. The major complication of the procedure is pneumothorax, reported to occur at a rate of approximately 6% (50,51). However, since transbronchial biopsies, brushings, and needle aspiration are also frequently performed at the time of fiducial placement, direct causality is difficult to attribute to fiducial deployment alone.

Embolization coils

Tumor marking can also be performed using embolization coils that are deployed using VB navigation relying on the airway mapping and fluoroscopic or CT guidance. This is done without the use of EM sensor or tracker and typically requires ultra-thin bronchoscope. One to two coils can be placed per lesion at the discretion of the operator. In experienced centers and following careful patient selection, the success rate for tumor marking with embolization coils using VB navigation guidance approaches 100% with a 30-day retention rate of 100% (52,53). The overall cost of coil marking is similar to that of EMN bronchoscopy and requires intra-operative fluoroscopy to identify the lesion.

Dye marking or “Tattooing”

EMN bronchoscopy is able to localize surgically “invisible” and non-palpable lesions during open, video-assisted, or robotic assisted thoracic surgery (54). Such lesions are usually smaller than 10 mm, appear as ground-glass nodules on CT, or located deep from the pleural surface. Ability to generate 3D airway road map using high quality thin-slice CT images allows for accurate localization and direct access to the lesion for marking to facilitate surgical biopsy or resection. As illustrated in Figure 9, dye marking can be achieved by lesion infiltration and extension of the “tattoo” to the overlying pleura with methylene blue or indigo carmine. Colored collagen (55), lipidol (56), or barium (57) are used less often.

Figure 9 Dye marking of a non-palpable lung nodule to facilitate surgical biopsy performed using electromagnetic navigation bronchoscopy prior to the video-assisted thoracoscopic surgery (VATS) procedure. After navigating to the lesion, LG was withdrawn and a 25 G sclerotherapy needle catheter was advanced via EWC to its distal tip. The needle was then advanced and methylene blue was injected to a total volume of 0.5 mL to tattoo the overlying pleura. Thereafter, wedge resection of the lesion via VATS was performed. EWC, extended working channel; LG, locatable guide.

Dye marking can be performed as a separate procedure prior to the surgery or under “live” conditions during surgery, allowing direct feedback from surgeon. If the tissue samples are to be obtained bronchoscopically for cytopathology review, these should be done prior to dye infiltration. Dye injection is achieved with a 25-gauge needle and volumes of 0.25 to 1.0 mL of methylene blue or indigo carmine are usually sufficient. The volume of dye injected also depends on the distance from the pleural surface (54,58). The choice of dye depends upon the timing of surgery as indigo carmine has an advantage of being visible to the surgeon ≥3 days after marking (59). Penetration of the visceral pleura and dye dispersion into the pleural space can be a potential consequence (60). As such, reported success of the dye marking ranges between 80% and 100% (58,61).

Safety profile

Given the minimal invasive nature of EMN bronchoscopy, the safety profile is reasonable. The risk of complications is similar to that of performing a needle or forceps biopsy sampling with routine bronchoscopy. The overall complication rate ranges from 0–10% with a pooled range of 4.2–7.2% in 2 recent meta-analyses (26,29). These include pneumothorax, hemoptysis, bleeding, and post-procedure respiratory failure.

Pneumothorax

Pneumothorax is the most common complication with a pooled rate of 3.1% in a recent meta-analysis (26). Of these, roughly half required tube thoracostomy for drainage. The recently published NAVIGATE study included 964 cases of peripheral lung lesions and reported a slightly higher rate of 4.9%, of which 3.2% required intervention (27). Literature examining TTNA may provide some insights as to mechanisms and risk factors. Longer needle passes, emphysema, smaller nodules, traversing fissure, and repeated pleural punctures, are all associated with increased risk of pneumothorax from TTNA (62-64). Shared characteristics that may increase the risk for EMN bronchoscopy related pneumothoraces include small nodules in close proximity to the pleura and proximity to the fissure. In both cases there is a greater risk of violating the visceral pleura. Chino et al. illustrated this relationship and risk of pneumothorax in a retrospective study of 991 patients (65). Target lesions located near interlobular pleura were 5 times more frequently associated with pneumothorax after bronchoscopy.

Procedural aspects may also impact the incidence of pneumothorax. An important component of EMN is the virtual nature of technology. CT-based planning is done at total lung capacity (TLC) in most commercially available platforms. During EMN bronchoscopy, the patient is breathing much closer to FRC independent of sedation modality. Chen et al. noted that nodules can move up to 4 cm or more during respiration (36). Also, the nodule movement is significantly more accentuated in the lower lobes compared to the upper lobes. For peripheral nodules as small as 1 cm, difference due to registration and/or navigation error can result in puncture of the visceral pleura by overshooting the lesion. In the authors’ experiences, use of fluoroscopy may mitigate this by visualization of the biopsy catheter and tools in relation to fluoroscopically visible nodules and the periphery combined with tactile feedback.

Hemoptysis

The incidence of hemoptysis during EMN bronchoscopy is quite low and this may be due to the use of an EWC in majority of the existing literature. When wedged into the periphery, it acts to tamponade any intra-procedural bleeding by occupying most, if not all, of the distal airways. While there is no evidence to suggest that topical therapies reduce bleeding, solutions such as cold saline or recombinant thrombin can be delivered through the EWC directly to the source. Reports of fatal arrhythmia complicating application of diluted epinephrine through EWC to control bleeding should probably discourage its future use (66). In contrast, when bleeding is more brisk, the catheter occupies most of the working channel of the bronchoscope, thereby significantly reducing suction capability. In order to effectively aspirate the resultant blood, the catheter must then be removed. Management principles are as in the case of bleeding with any other type of bronchoscopy.

EM interference

During early implementation of EMN technology, theoretical concerns of interaction with EM field generator and automated implantable cardioverter defibrillator (AICD) or permanent pacemaker (PPM) were present. Suggested interactions included interfering with device function, damage, overheating, and lead displacement. This led to an initial recommendation that EMN bronchoscopy is relatively contraindicated in patients with these devices. This is despite the extremely low magnetic field of <0.0001 T with an established safety profile of AICD/PPM in MRI of up to 3 T. Subsequently, a study of 24 patients showed no adverse cardiac events or navigation errors (67). Another study showed that not only was there no negative effect on AICD function, but it would still detect a tachyarrhythmia and deliver an appropriate shock (68). While cardiac monitoring is recommended, EMN bronchoscopy appears to be safe to use in patients with AICD and PPM.

Education and training in EMN technology

The growth of technology has resulted in increasing number of procedures available to clinicians. The vendors for each technology platform provide training to physicians though none is validated for competency development. An education and training program must be competency-based and milestones driven. Recently, a multi-society guideline was published outlining required procedures and their quantity to each accreditation (69). However, many of the required number of procedures were reached by expert opinion rather than direct evidence. Well-designed studies are needed to characterize the learning curve of physicians in achieving competency in performing EMN bronchoscopy using validated assessment tools. In the context of EMN bronchoscopy, an effective training program must not only meet the learning needs of the proceduralist but also address the barriers in learners’ environment.

Other considerations

Since the introduction of the first EMN system into the market in 2006 (superDimension^TM), several other commercial systems and technologies have been developed, thus expanding the market and opening it for competition. Prominent among them are Veran SpinDrive^TM and Archimedes^TM. Additional systems are emerging to the market or are in different stages of research and development.

As with many new technologies, the cost of EMN bronchoscopy is high. While the exact cost of a system is variable, the initial capital purchase can be easily more than 100,000 US dollars. The list price for the Veran SpinDrive^TM is $225,000 with a $30,000/year service contract that includes procedural support, software upgrades, and hardware damage. In comparison the list price for superDimension^TM is approximately $250,000 with an annual service contract pricing ranging from 14,000 to 32,000 $. In addition to the upfront capital outlay, the two commercially available systems use a number of proprietary biopsy tools and catheters. While a direct per procedure comparison is not possible due to variance in individual provider practices, one can expect to use at least 1,000–2,000 $ worth of disposables per case.

The Archimedes^TM system is currently priced around $325,000. Although upfront price of capital purchase is high, it does not require dedicated catheters for lesions not requiring BTPNA. This possibly offsets the higher purchase cost over the life span of the equipment.

Future

It is an exciting time for the field of bronchoscopy. The industry continues to learn from the limitations of existing platforms. Their partnership with the clinicians has resulted in introduction of enhanced software algorithms and sampling tools. Newer platforms have integrated fluoroscopy to mitigate CT-body divergence error, and the lesions are more visible with newer algorithms. Also, growth of competing technologies has helped with innovation. Recently, there has been a great interest in robotic bronchoscopy. Auris Health, Inc. (Redwood City, CA) recently received FDA approval for its Monarch^TM robotic platform. This platform integrates advancements in robotics, micro-instrumentation, endoscope design, and sensing, while using the airway map generation software and EM tracker real-time during bronchoscopy. A recent study using the Monarch^TM platform demonstrated greater accessibility to the periphery of the lung, as well as, the ability to obtain tissue biopsies for small lung lesions (70). Whether these advances will translate into higher diagnostic yield and better patient outcomes remains to be seen.

Conclusions

In summary, EMN is an indispensable technology in assisting with diagnosis of peripheral lung lesions. It has transformed the landscape of bronchoscopy and opened avenues for innovation in the diagnosis and treatment of early stage lung cancer. As the technology advances, we anticipate intuitive platforms with improved accuracy and greater efficiency. Successful application of technology requires proper education and training of the operator, focus on program development, institutional support, and multi-disciplinary teams to engage, interact, and communicate effectively.
