Associated multiplex biomarker detection for colorectal cancer based on Bio-Plex platform

Introduction

Colorectal cancer (CRC) is the fifth leading cause of cancer-related death in China. It is estimated that about 2,814,000 Chinese die from cancer in 2015, corresponding to over 7,500 cancer deaths on average per day, and a total of 215,700 new CRC cases and 376,300 deaths were estimated to occur in 2015 (1). Despite the advances in CRC therapy, the survival rate of CRC patients remains low because most CRC patients are diagnosed at the advanced stage. There are several ways to diagnose CRC, such as colonoscopy, CT scan, tumor biomarkers, stool occult blood test and so on. However, a convenient way for CRC screening is currently lacking. Thus, new convenient, sensitive and specific diagnostic methods for CRC are urgently required. CRC research has focused mainly on intracellular biomarkers for many years (2). Recently, more attention has been paid to soluble cancer biomarkers, which can be used for the earlier diagnosis of CRC (3).

A cancer biomarker refers to a substance or process that is indicative of the presence of cancer in the body. The National Institutes of Health Biomarkers Definition Working Group1 provided a formalized definition of biomarker as cellular, biochemical, and molecular alterations by which a normal, abnormal, or simply biologic process can be recognized or monitored and are used to objectively measure and evaluate normal biological processes, pathogenic processes, or pharmacologic responses to a therapeutic intervention (4). Most diagnostic tests available to date are based on a single protein biomarker. So far, some serum tumor markers are used for the adjunctive diagnosis of CRC. But each single biomarker suffers from low diagnostic specificity and sensitivity because of the heterogeneity of cancer phenotypes (5). It is now widely accepted that panels of biomarkers are required to achieve the increased sensitivity and specificity necessary for population-based screening (6). Therefore, we try to use the detection of associated multi-parametric tumor biomarkers for clinical CRC diagnosis.

The Bio-Plex technology that combines fluorescent flow cytometry and ELISA is an accurate and sensitive method for detecting multiple cytokines (7). It also can be used to quantify multiple protein biomarkers in a single well of a 96-well plate simultaneously. Based on Bio-Plex technology, human cancer biomarker assays are designed to meet the needs of the most demanding clinical research environments. We measured the differences between CRC patients and healthy volunteers in 16 angiogenic molecules in serum samples. We also tried to analyze the clinical significance of these biomarkers in CRC patients. Furthermore, we evaluated the diagnostic values of each single factor and the combination of multiple biomarkers for CRC.

Methods

Samples

A total of 152 patients were identified from participants from Dianjiang area and for whom stored plasma samples were available. Samples were selected as follow: (I) patients were newly diagnosed primary CRC in Dianjiang People’s Hospital of Chongqing; (II) patients who had received any anti-cancer therapy were excluded from the study; (III) patients who suffered from any other cancer (such as breast cancer, lung cancer, etc.) were excluded from the study. In the end, a total of 58 newly diagnosed primary CRC patients in Dianjiang People’s Hospital of Chongqing were included in the study. Twenty controls were also included in the study, to compare CRC patients’ biomarker level with those in the normal population. No difference in age and gender was observed between controls and cases. Each participant provided written informed consent, and the study was authorized by the Ethics Committee of Dianjiang People’s Hospital (ID: CQDY2015071421).

The clinical parameters of 58 patients, including age, gender, location, T stage and LN metastasis, were collected from the patient records and summarized in Table 1. The histopathological diagnosis of the specimens was made according to the AJCC TNM classification (7th edition). Subjects in the healthy control group (n=20) ranged in age from 35.6 to 84.9 years.

Serum collection

Approximately 2 mL of venous blood sample from 58 CRC patients and 20 controls were collected. Then these samples were drawn into tubes without anticoagulant agent and then centrifuged. All serum samples were frozen at −80 °C until used.

Luminex analysis

A Bio-Plex suspension array system (Human Cancer Bio-marker 16-Plex Panel, Bio-Rad) was performed to detect the levels of 16 types of serum cytokines. The Bio-Plex Human Cancer Cytokine 16-Plex panel includes human sEGFR, FGF-basic, Follistatin, G-CSF, sHER2/neu, HGF, sIL-6Ra, Leptin, Osteopontin, PDGF-AB/BB, Hu PECAM, Prolactin, SCF, sTIE-2, sVEGFR-1, sVEGFR-2. Premixed beads coated with the 16 types of target capture antibodies were transferred into a 96-well filtration plate supplied with the assay kit. After two washes with the Bio-Plex wash buffer, premixed standards or 50 µL samples were added to each well containing washed beads. Then, the 96-well filtration plate was placed on a shaking table (850±50 rpm) for 1 hour at room temperature, to permit each bead to adequately bind to the specific biomarker. After two washes with 100 µL Bio-Plex wash buffer, mixed biotinylated detection antibodies (50 µL, final concentration of 2 µg/mL) were added to each well and incubated for 10 minutes at room temperature on the shaking table. After three washes with 100 µL Bio-Plex wash buffer, the beads were re-suspended in 125 µL of Bio-Plex assay buffer and read on a Bio-Plex array reader. The data were analyzed using BioPlex^® 2000 Multiplexing Platform.

Data analysis

All statistical analyses were performed using the SPSS 17.0 software package (SPSS, Chicago, IL), and values of P<0.05 were defined as statistically significant. The data are expressed as the means ± standard error of measurements. We get the original data from the BioPlex^® 2000 Multiplexing Platform. All the data in the text are from Table S1. First, the Wilcoxon rank sum test was used to analyze the differential expression of factors between controls and CRC patients. Then we screened out some cytokines that are valuable in the diagnosis of CRC. The Kruskal-Wallis test was performed to evaluate whether the levels of various factors were correlated with clinical parameters. The diagnostic value of each marker was determined by receiver operating characteristic (ROC) curve analysis. At last, we use linear discriminant analysis (stepwise method) to verify associated markers of CRC diagnosis.

Results

The characteristics of CRC patients

The clinical features of the 58 patients who were diagnosed CRC are presented in Table 1. The patients included 37 (63.8%) men and 21 (36.2%) women. The average age is 66.5 years (66.5±10.2, from 38.1 to 86.5). Among these patients, well differentiated cancers were diagnosed in 7 (12.1%) patients, moderately differentiated cancers in 19 (32.8%) patients and poorly differentiated cancers in 32 (55.2%) patients. CT scan showed that 27 (46.6%) patients had lymph node metastases, while other 31 (53.4%) patients not.

Profiles

The expression levels of 16 cytokines in each of the plasma samples from CRC patients and healthy volunteers were evaluated by using Bio-Plex assay. Then we use Wilcoxon rank sum test to analyze the differential expression of factors between controls and CRC patients. The levels of 3 cytokines, follistatin (997.4±87.2 vs. 586.7±40.8 pg/mL), HGF (2,076.2±141.2 vs. 1,430.7±54.7 pg/mL), osteopontin (87,317.3±7,027.8 vs. 57,286.9±5,192.1 pg/mL), PECAM (10,016.2±382.5 vs. 7,863.5±499.8 pg/mL), are significantly higher in CRC patients compared with healthy controls (Table 2). We also detected a significant decrease of leptin (4,483.6±763.7 vs. 9,530.6±1,760.3 pg/mL), in CRC patients compared with healthy controls (Table 2). There is no significant difference in sEGFR, FGF-basic, G-CSF, sHER2/neu, sIL-6Ra, PDGF-AB/BB, Prolactin, SCF, sTIE-2 sVEGFR-1, or sVEGFR-2 levels was observed between cancer patients and healthy volunteers (P>0.05).

Correlation of cytokine levels and clinical parameters in CRC patients

We further analyzed whether the levels of these cytokines were correlated with clinical parameters in CRC patients. Mann-Whitney U analyses showed that leptin (P=0.026) level was significantly higher in patients with advanced CRC. The levels of leptin (P=0.017) and PECAM (P=0.016) were significantly correlated with the cancer differentiation state. Moreover, plasma levels of osteopontin (P=0.042) were significantly higher in patients with lymph node metastasis than in patients without lymph node metastasis (Table 3). We did not find any association between the levels of other factors and clinical parameters (Table 3).

Screening and diagnostic serum biomarkers for CRC

ROC curve analyses were performed to evaluate the diagnostic values of individual marker for CRC. Among the 16 biomarkers tested, the up-regulation of follistatin (0.695, P=0.0009), HGF (0.852; P<0.0001) and osteopontin (0.671; P=0.0079) were shown to have significant diagnostic values for CRC. Among the decreased markers, only PECAM (0.734; P=0.0003) exhibited significant diagnostic values for CRC (Table 4). These cutoff values were calculated according to the principle that the maximum sensitivity values added specificity (Table 5, Figure 1).

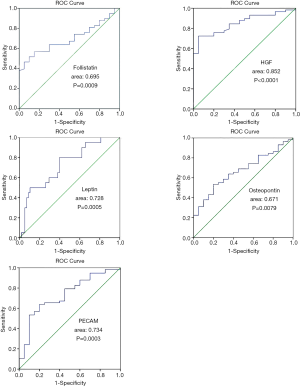

Figure 1 The AUC for each biomarker. AUC, area under the ROC curve.

Associated markers for CRC diagnosis

To maximize the ability to detect CRC, the concentrations of serum follistatin, osteopontin, PECAM, HGF and leptin were further used for linear discriminant analyses. Using a stepwise method, we obtained the following regression equations: Y=0.03 Follistatin +0.04× HGF. Using this regression equation, the sensitivity and specificity for CRC were calculated as 93.1% (54/58) and 60.0% (12/20), indicating that the combination of multiple markers is a more powerful tool for CRC diagnosis than each individual marker detection.

Discussion

CRC is a leading cause of death worldwide, with over one million of new cases and half a million of deaths around the world every year. Approximately 1,235,108 people are diagnosed annually with CRC, from which 609,051 die annually (8) .The World Health Organization estimates an increase of 77% in the number of newly diagnosed cases of CRC and an increase of 80% in deaths from CRC by 2030 (9). Five-year relative survival rates are under 50%, this greatly depends on the stage at the time of diagnosis (10). No primary preventive measure has proven efficacy in reducing incidence, but early detection through population screening has been found to reduce mortality (11). Unfortunately, many patients have distant metastatic disease at the time of presentation (12). Therefore, it’s necessary for early diagnosis of CRC. There are many methods for the diagnosis of CRC, including electronic colonoscopy, CT scan, serum tumor markers, and so on. Colonoscopy, which has higher sensitivity (97%) and specificity (98%) for early detection of CRC, is also invasive, expensive, and has a high risk of complications, which often leads to poor patient compliance (13,14). The traditional detection of serum tumor markers is more convenient, but lack of specificity and sensitivity. So we want to find a new way to solve this problem.

Recently, the Luminex platform has become a robust, mainstream approach for academic and pharmaceutical research. This technology gives researchers the ability to look at analyse simultaneously providing more information from less sample volume in less time than traditional immunoassay methods (15). Abnormal plasma levels of cytokines were proved to be associated with different clinical manifestations in patients by using this technology (16).

Some experiments prove that serum follistatin is aberrant expressed in a variety of solid tumours, including breast cancer (17), prostate cancer (18), lung cancer (19), and melanoma (20). Abnormal activation of HGF is also established in different kinds of cancer, including myeloma, acute myeloid leukemia, chronic myelogenous leukemia, and myeloproliferative neoplasms (21). It was observed that more colon tumors were found in mice which fed a high-fat diet (22). It was proved that serum leptin levels were significantly decreased in patients with colon cancer (23). Many researchers believe that plasma osteopontin is a potential diagnostic biomarker for hepatocellular carcinoma (24), gastric cancer (25), melanoma (26), lung cancer (27), prostate cancer (28), and ovarian cancer (29,30). PECAM is thought to be associated with breast cancer (31). In our study, we found the five biomarkers, follistatin, HGF, osteopontin, PECAM and leptin were significantly changed in CRC patients. Therefore, examinations of these five serum cytokines at the same time maybe can improve the diagnostic rate of patients with CRC.

In the present study, we describe the characterization of a novel blood test for CRC patients for the first time based on the novel, high-flux Bio-Plex assay platform. The results showed that serum levels of Follistatin, HGF, PECAM, and osteopontin were significantly higher in CRC patients than healthy subjects, while serum levels of leptin were decreased. The levels of and leptin and PECAM were significantly correlated with tumor differentiation status. Moreover, serum levels of osteopontin were significantly higher in patients with lymph node metastasis compared with patients without lymph node metastasis. But the limitation of our study is that the mechanism of these serum biomarkers for CRC is not clear yet. This is what we need to do in our next study.

ROC curve analyses indicated that markers that were up-regulated in CRC, including follistatin, HGF, and osteopontin, had good diagnostic value. The down-regulated marker, PECAM, also presented a good diagnostic value for CRC. However, due to the heterogeneity of the tumors, individual marker detection would be insufficient for clinical evaluation. Therefore, multiplex marker detection provides numerous advantages as a diagnostic platform. To maximize the ability to detect CRC, the five identified biomarkers were further used for linear discriminant analyses. Using a regression equation, the sensitivity and specificity for CRC were found to be 93.1% (54/58) and 60.0% (12/20), respectively, indicating that the multiplex method is a powerful tool for CRC diagnosis compared with single marker detection.

In conclusion, the present study examined the differential expression and diagnostic values of 16 angiogenic molecules using a Bio-Plex bead-based liquid suspension array. This platform offers ease of use, low cost, flexible array preparation, and automatic data analysis, making it an attractive platform for widespread applications. Further study will be required to validate the practicality of the regression equation and to identify the best combination of multiplex markers for CRC diagnosis based on the Bio-Plex platform.

Acknowledgments

First and foremost, I appreciate my hospital, Dianjiang People’s Hospital of Chongqing, which gives me a comfortable research atmosphere. Second, I would like to show my deepest gratitude to Shanhong Tang, who has offered help through all the stages of research. Without his illuminating instruction, this thesis could not have reached its present form. I am also greatly indebted to all my teammates, for their encouragement and support.

Funding: This work was supported by Chongqing social and Livelihood Science and technology innovation special project.

Footnote

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at http://dx.doi.org/10.21037/amj.2019.03.01). The authors have no conflicts of interest declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). Each participant provided written informed consent, and the study was authorized by the Ethics Committee of Dianjiang People’s Hospital (ID: CQDY2015071421).

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
